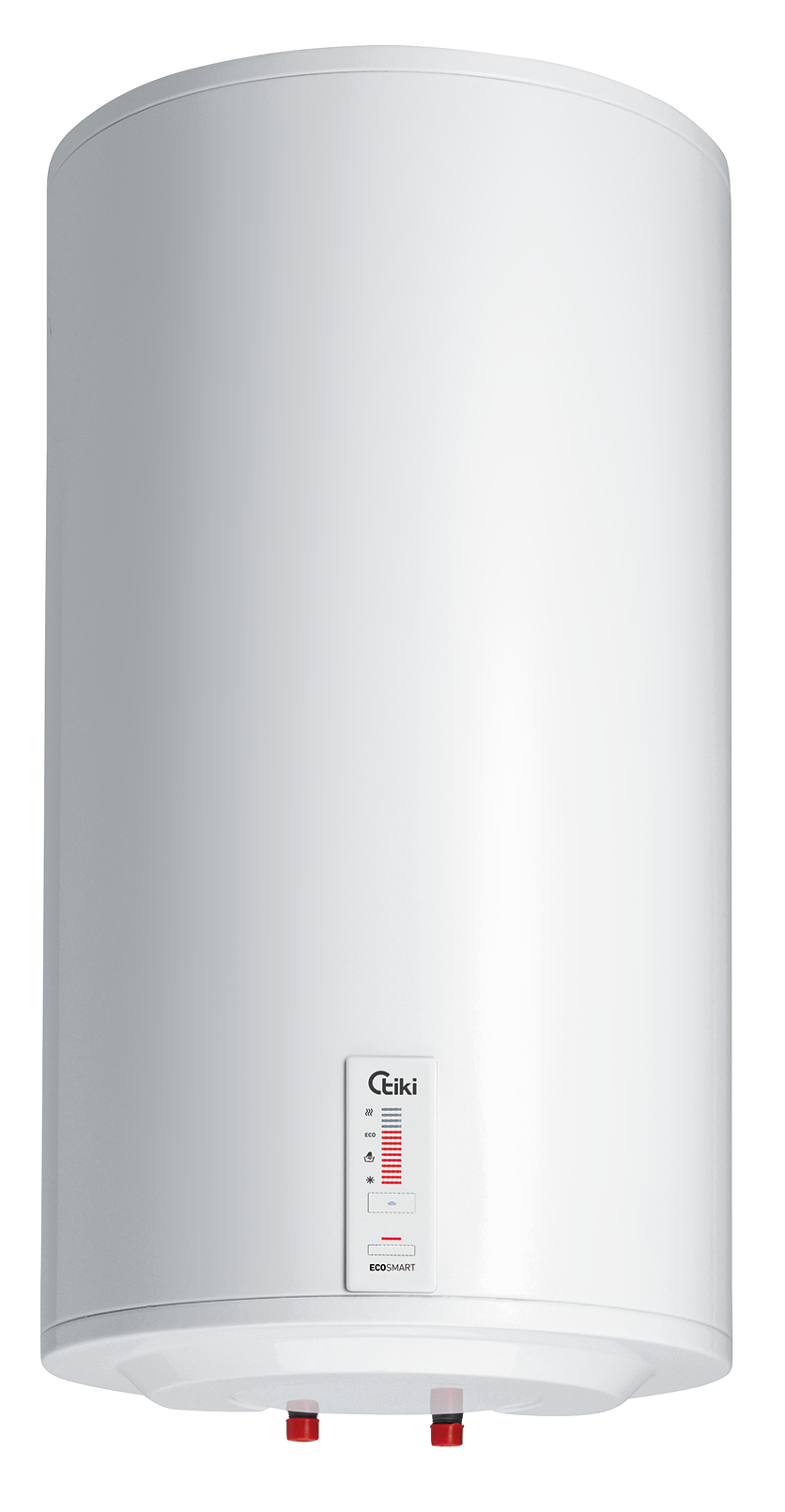

Econ ES 100

C
  • Storage volume V
    96,1 l
  • Daily electricity consumption Qelec_ACC
    13,568 kWh
  • AEC annual electricity consumption
    2542 kWh
  • Net/gross weight/with water
    34/36/134 kg
Vertical wall mounting
High quality insulation
Indirect tube air heaters

Technical properties

Characteristics

Declared load profile
L
Energy efficiency class
C
Energy efficiency ƞwh
40 %
AEC annual electricity consumption
2542 kWh
Daily electricity consumption Qelec_ACC
13,568 kWh
Thermostat temperature settings
"eco"
Value of smart
1
Weekly electricity consumption with smart control Qelec, week, smart
51,286 kWh
Weekly electricity consumption without smart control Qelec, week
60,245 kWh
Storage volume V
96,1 l
Mixed water at 40°C V40
137 l

Purpose

One or more connection point
+
Vertical wall mounting
+

Dimensions of connections

Average thickness of insulation
17 mm
Connections to the supply network
G 1/2
Net/gross weight/with water
34/36/134 kg

Technical characteristics

Working pressure
0,6 (6) / 0,9 (9) Mpa(bar)
Enamelled steel
+
Protective magnesium anode
+
Electronic control unit
+
On / Off key
+
Temperature range adjustment up to 75 °C
+
LED Thermometer
+
Overheating protection
+
Dry fire protection
+
Setting to "freeze prevention"
+
Self-learning function
+
Indication of heating element operation
+
Indication of thermostat failure
+
Indication of over heating
+
Smart operation indicator
+
Degree of protection
IP 24

Electrical connections

Number of el.heaters x power
2x1000 W
Power consumption
2000 W
Voltage 230 V ~
+
Nominal current
8,7 A

Functional characteristics

Thermal losses at 65 °C
2,2 kWh/24
Heating time from 10 to 65 °C
3h 16min

Transportation data

Packaging dimensions [WxDxH]
480x490x980 mm
