Mini P 10

A
  • Storage volume V
    9,8 l
  • Daily electricity consumption Qelec_ACC
    2,377 kWh
  • AEC annual electricity consumption
    508 kWh
  • Net/gross weight/with water
    8/9/18 kg
Over sink installation
Electric immersion heaters

Technical properties

Characteristics

Declared load profile
XXS
Energy efficiency class
A
Energy efficiency ƞwh
36 %
AEC annual electricity consumption
508 kWh
Daily electricity consumption Qelec_ACC
2,377 kWh
Thermostat temperature settings
"e" / "eco"
Value of smart
0
Storage volume V
9,8 l

Purpose

One connection point
+
Overbasin installation
+
Underbasin installation
0

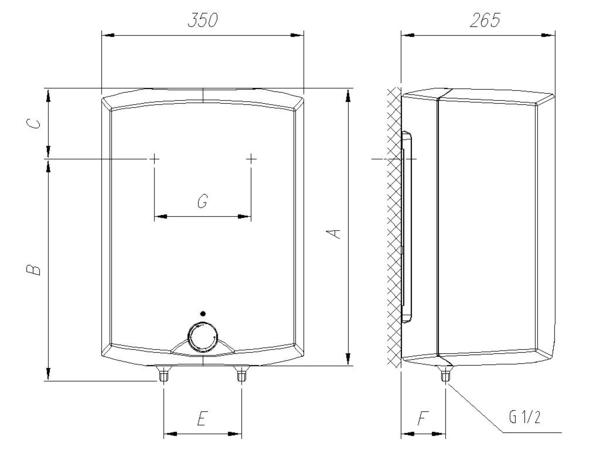

Dimensions of connections

Average thickness of insulation
40 mm
Connections to the supply network
G 1/2
Net/gross weight/with water
8/9/18 kg

Technical characteristics

Working pressure
0,6 (6) / 0,9 (9) MPa (bar)
Plastic tank
+
Protective magnesium anode
+
Selection of temperature up to 75 °C
+
Protection against freezing
+
Heating element control lamp
+
Degree of protection
IP24

Electrical connections

Power consumption
2000 W
Voltage 230 V ~
+
Nominal current
8,7 A

Functional characteristics

Thermal losses at 65 °C
0,48 kWh/24
Heating time from 10 to 65 °C
20min

Transportation data

Packaging dimensions [WxDxH]
300x400x530 mm
