Mini PBT 15

A
  • Storage volume V
    14,9 l
  • Daily electricity consumption Qelec_ACC
    2,465 kWh
  • AEC annual electricity consumption
    523 kWh
  • Net/gross weight/with water
    11/12/26 kg
Under sink installation
Electric immersion heaters

Technical properties

Characteristics

Declared load profile
XXS
Energy efficiency class
A
Energy efficiency ƞwh
35 %
AEC annual electricity consumption
523 kWh
Daily electricity consumption Qelec_ACC
2,465 kWh
Thermostat temperature settings
"e" / "eco"
Value of smart
0
Storage volume V
14,9 l

Purpose

One connection point
+
Overbasin installation
0
Underbasin installation
+

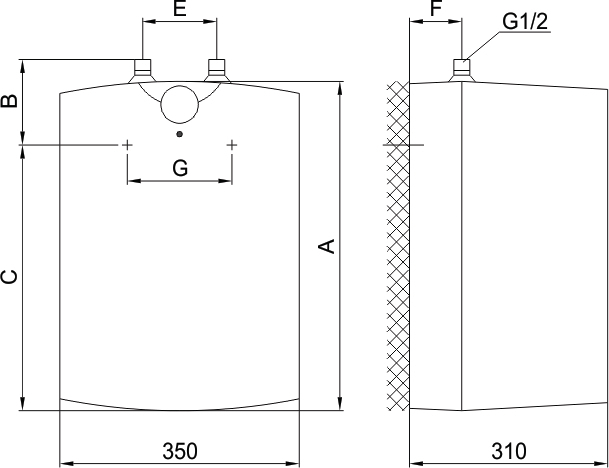

Dimensions of connections

Average thickness of insulation
30 mm
Connections to the supply network
G 1/2
Net/gross weight/with water
11/12/26 kg

Technical characteristics

Working pressure
0,6 (6) / 0,9 (9) MPa (bar)
Plastic tank
+
Protective magnesium anode
+
Selection of temperature up to 75 °C
+
Protection against freezing
+
Heating element control lamp
+
Degree of protection
IP24

Electrical connections

Power consumption
2000 W
Voltage 230 V ~
+
Nominal current
8,7 A

Functional characteristics

Thermal losses at 65 °C
0,62 kWh/24
Heating time from 10 to 65 °C
29min

Transportation data

Packaging dimensions [WxDxH]
350x400x530 mm
