Mini PBT 5

A
  • Storage volume V
    6,6 l
  • Daily electricity consumption Qelec_ACC
    2,480 kWh
  • AEC annual electricity consumption
    525 kWh
  • Net/gross weight/with water
    6,8/7,3/11,8 kg
Under sink installation
Electric immersion heaters

Technical properties

Characteristics

Declared load profile
XXS
Energy efficiency class
A
Energy efficiency ƞwh
35 %
AEC annual electricity consumption
525 kWh
Daily electricity consumption Qelec_ACC
2,480 kWh
Thermostat temperature settings
"e" / "eco"
Value of smart
0
Storage volume V
6,6 l

Purpose

One connection point
+
Overbasin installation
0
Underbasin installation
+

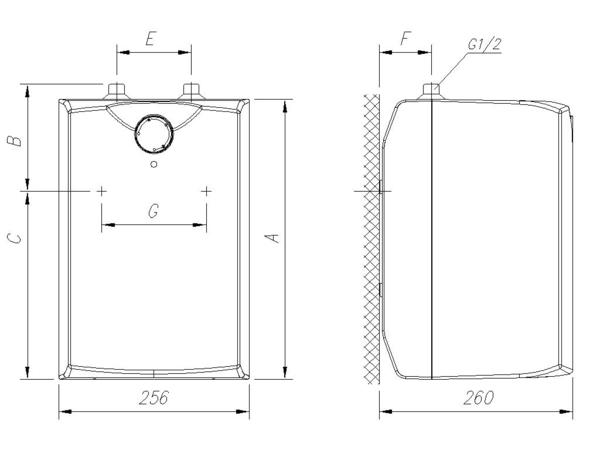

Dimensions of connections

Average thickness of insulation
28 mm
Connections to the supply network
G 1/2
Net/gross weight/with water
6,8/7,3/11,8 kg

Technical characteristics

Working pressure
0,6 (6) / 0,9 (9) MPa (bar)
Plastic tank
+
Protective magnesium anode
+
Selection of temperature up to 75 °C
+
Protection against freezing
+
Heating element control lamp
+
Degree of protection
IP24

Electrical connections

Power consumption
2000 W
Voltage 230 V ~
+
Nominal current
8,7 A

Functional characteristics

Thermal losses at 65 °C
0,35 kWh/24
Heating time from 10 to 65 °C
11min

Transportation data

Packaging dimensions [WxDxH]
300x300x440 mm
