Prime CR 120

C
  • Storage volume V
    108,0 l
  • Daily electricity consumption Qelec_ACC
    12,901 kWh
  • AEC annual electricity consumption
    2770 kWh
  • Net/gross weight/with water
    42/159 kg
Vertical wall mounting
Electric immersion heaters
High quality insulation

Technical properties

Characteristics

Declared load profile
L
Energy efficiency class
C
Energy efficiency ƞwh
37 %
AEC annual electricity consumption
2770 kWh
Daily electricity consumption Qelec_ACC
12,901 kWh
Thermostat temperature settings
"e" / "eco"
Value of smart
0
Storage volume V
108,0 l
Mixed water at 40°C V40
143 l

Purpose

One or more connection point
+
Vertical wall mounting
+

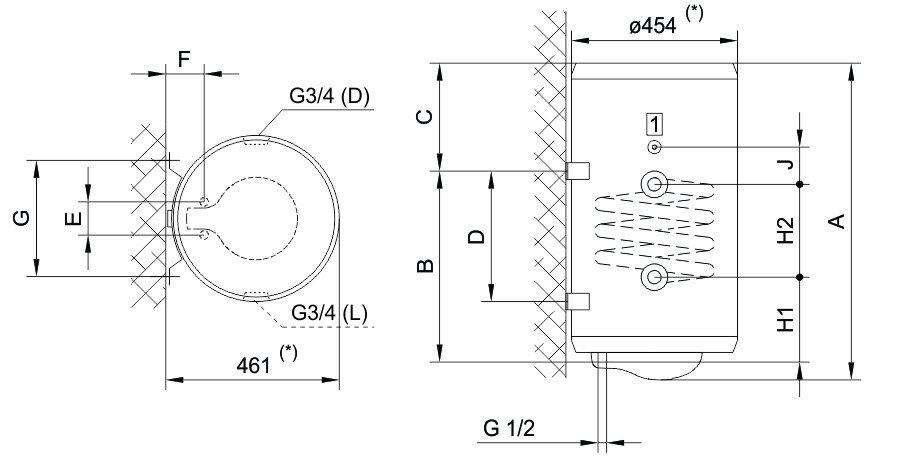

Dimensions of connections

Average thickness of insulation
23 mm
Connections to the supply network
G1/2
Connections for heat exchanger
G 3/4
Net/gross weight/with water
42/159 kg

Technical characteristics

Working pressure
0,6 (6)/0,9 (9) MPa (bar)
Enamelled steel
+
Protective magnesium anode
+
Selection of temperature up to 65 °C
+
Heating element control lamp
+
Protection against freezing
+
Termometer
+
Degree of protection
IP 23

Heat exchanger

Surface area of the heat exchanger
0,40 m2
Exchange power in continuous mode (max. coil output)
10,55 kW
Continuous flow rate of DHW at ΔT35 °C
265 l/h
Max. pressure of the heating medium
0,6 (6) MPa (bar)
Max. input temperature
5 - 85 °C

Electrical connections

Power consumption
2000 W
Voltage 230 V ~
+
Nominal current
8,7 A

Functional characteristics

Thermal losses at 65 °C
1,84 kWh/24
Heating time from 10 to 55 °C
3h 46min

Transportation data

Packaging dimensions [WxDxH]
488x498x1115 mm
