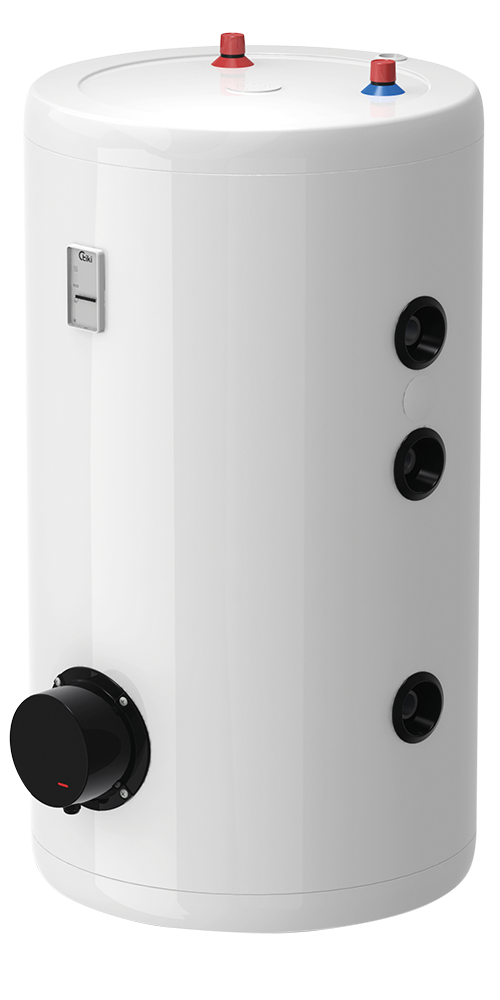

Space 100

C
  • Storage volume V
    91 l
  • Net/gross weight/with water
    55/57/155 kg
High quality insulation
Overheating protection
Indirect tube air heaters

Technical properties

Characteristics

Energy efficiency class
C
Standing loss S
53 W
Storage volume V
91 l

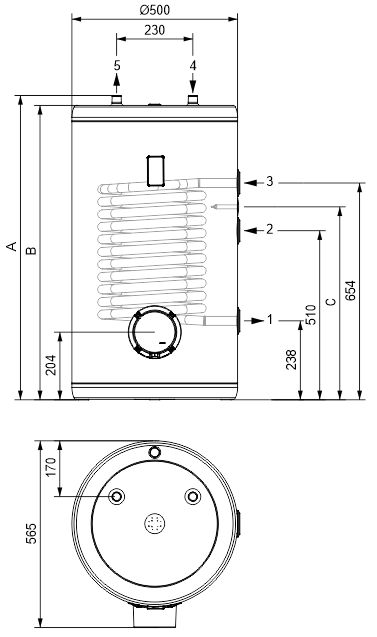

Connection dimension

Height
948 mm
Diameter
500 mm
Depth
565 mm
Connections to the supply network
G3/4
Dimension of heat exchanger connection
G3/4
Net/gross weight/with water
55/57/155 kg

Technical characteristics

Enamelled steel
+
Protective Mg anode
+
Average thickness of insulation
40 mm
Degree of protection
IP 24
Surface area of the heat exchanger
0,9 m2
Heat exchanger volume
4,2 l
Exchange power in continuous mode (max. coil output)
17,6 kW
Continous output ΔT=35K
433 l/h
Working pressure
0,6(6) / 0,9(9) Mpa(bar)
Working pressure heat exchanger
1,2 (12) Mpa(bar)
El. resistance heating power
3 kWh
Voltage 230 V ~
+
Max. water temperature storage tank
85 °C
Max. water temperature heat exchenger
95 °C
Thermal losses
1,3 kWh/24

Transportation data

Packaging dimensions [WxDxH]
600x600x1047 mm
