Space S5.0 430 | Tiki | TIKI

Space S5.0 430

B
  • Storage volume V
    405 l
  • Net/gross weight/with water
    195/210/604​ kg
High quality insulation
Overheating protection

Technical properties

Characteristics

Energy efficiency class
B
Standing loss S
70,0​ W
Storage volume V
405 l

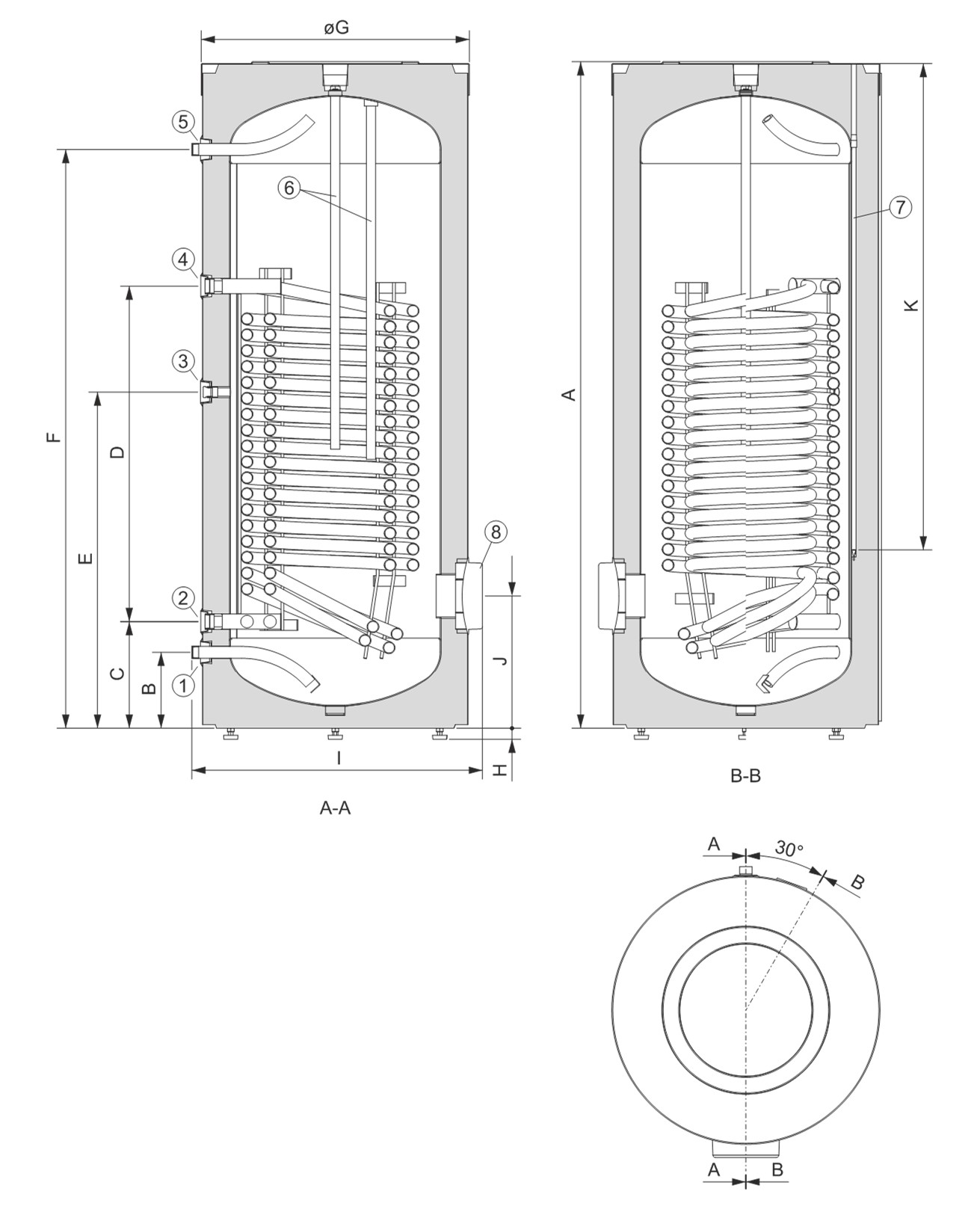

Connection dimension

Height
1920 mm
Diameter
750 mm
Depth
830 mm
Connections to the supply network
R 1
Dimension of heat exchanger connection
G 1 1/4
Net/gross weight/with water
195/210/604​ kg

Technical characteristics

Enamelled steel
+
Protective Mg anode
+
Average thickness of insulation
75 mm
Degree of protection
IP 24
Surface area of the heat exchanger
5 m2
Heat exchanger volume
32,5 l
Exchange power in continuous mode (max. coil output)
Continous output ΔT=35K
2000 l/h
Working pressure
0,6 (6) / 0,9 (9)/ 1(10)​ Mpa(bar)
Working pressure heat exchanger
1,0 (10)​ Mpa(bar)
El. resistance heating power
0
Voltage 230 V ~
0
Max. water temperature storage tank
85 °C
Max. water temperature heat exchenger
95 °C
Thermal losses
1,7 kWh/24

Transportation data

Packaging dimensions [WxDxH]
900x900x2110 mm

Documents
