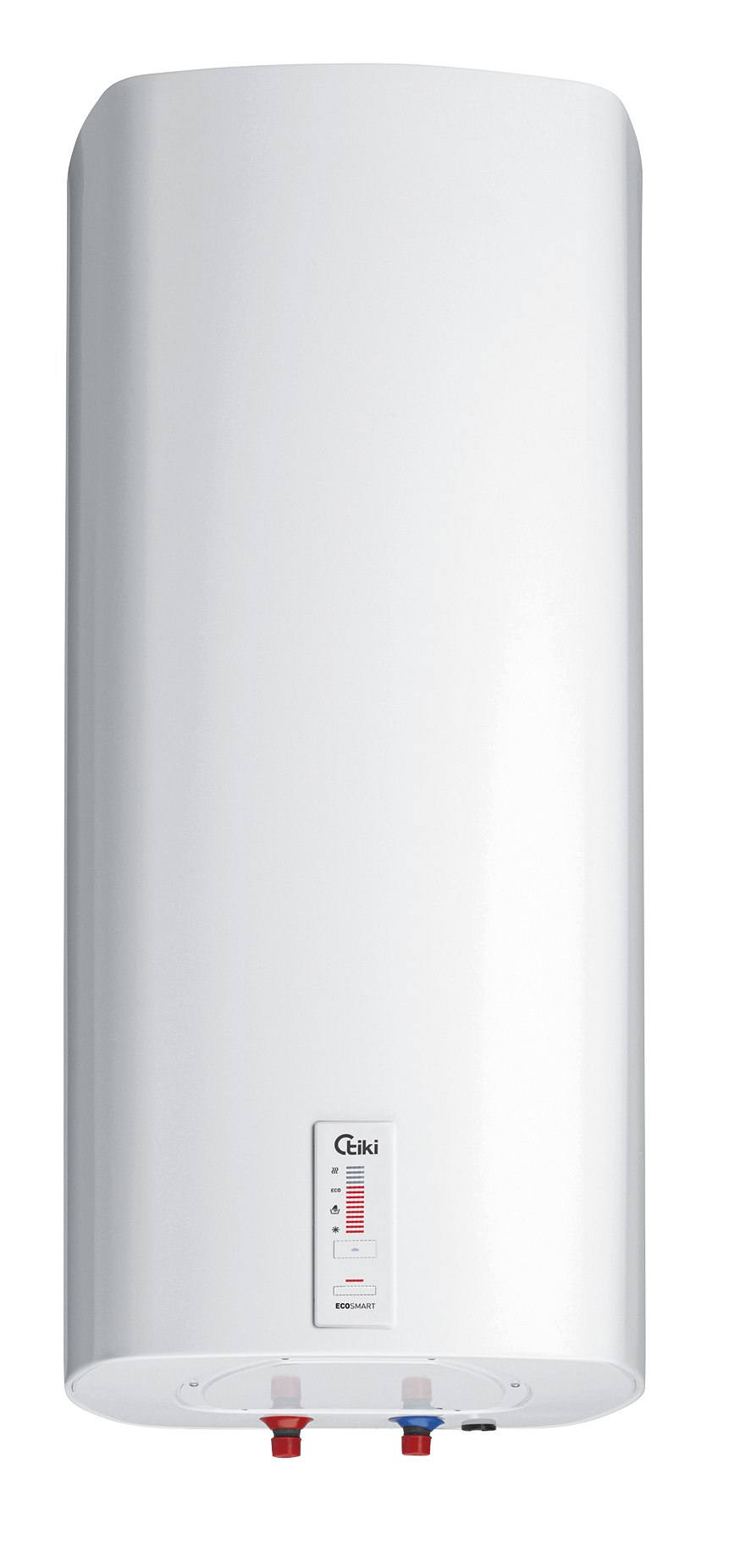

Supr ESD 50

B
  • Storage volume V
    48,3 l
  • Daily electricity consumption Qelec_ACC
    6,870 kWh
  • AEC annual electricity consumption
    1282 kWh
  • Net/gross weight/with water
    24/26/74 kg
Vertical wall mounting
High quality insulation
Indirect tube air heaters

Technical properties

Characteristics

Declared load profile
M
Energy efficiency class
B
Energy efficiency ƞwh
40 %
AEC annual electricity consumption
1282 kWh
Daily electricity consumption Qelec_ACC
6,870 kWh
Thermostat temperature settings
"eco"
Value of smart
1
Weekly electricity consumption with smart control Qelec, week, smart
24,198 kWh
Weekly electricity consumption without smart control Qelec, week
28,501 kWh
Storage volume V
48,3 l
Mixed water at 40°C
66 l

Purpose

One or more connection point
+
Vertical wall mounting
+

Dimensions of connections

Average thickness of insulation
20 - 60 mm
Connections to the supply network
G1/2
Net/gross weight/with water
24/26/74 kg

Technical characteristics

Working pressure
0,6 (6) / 0,9 (9) Mpa (bar)
Enamelled steel
+
Protective magnesium anode
+
Electronic control unit
+
On / Off key
+
Temperature range adjustment up to 75 °C
+
LED Thermometer
+
Overheating protection
+
Dry fire protection
+
Setting to "freeze prevention"
+
Self-learning function
+
Indication of heating element operation
+
Indication of thermostat failure
+
Indication of over heating
+
Smart operation indicator
+
Degree of protection
IP 24

Electrical connections

Number of el.heaters x power
2 x 1000 W
Power consumption
2000 W
Voltage 230 V ~
+
Nominal current
8,7 A

Functional characteristics

Thermal losses at 65 °C
0,94 kWh/24
Heating time from 10 to 65 °C
1h 38min

Transportation data

Packaging dimensions [WxDxH]
490x500x810 mm
