DHWA

A+
  • Daily electricity consumption Qelec_ACC
    5,261 kWh
  • AEC annual electricity consumption
    1122 kWh
  • Height
    550 mm
  • Width
    750 mm
  • Depth
    730 mm
Anti-legionella function
Automatic deforst
Air ducts

Independent split version of a heat pump with a water connection, enabling simple and fast installation.

Operation range (air temperature) -7°C to +45°C.

Heating of water up to 65°C.

Integrated circulation pump.

Automatic deaeration.

Left or right connection to the tank’s heat exchanger.

Technical properties

Characteristics

Energy efficiency class
A+
Energy efficiency ƞwh
149 %
AEC annual electricity consumption
1122 kWh
Daily electricity consumption Qelec_ACC
5,261 kWh
Thermostat temperature settings
55°C
Sound power level LWA, indoors /Sound Pressure on 1m
59 / 48 dB(A)
Storage volume V
276 l
Mixed water at 40°C V40
411 l
Reference heat exchanger surface
2,5 m2

Technical characteristics

COPDHW (A20/W10-55) EN 16147
3,6
Heating time A20 / W10-55
08:58 h:min
Heating up energy input (A20/W10-55) EN 16147
3,66 kWh
Energy consuption by choosen cyclus (A20/W10-55) EN 16147
5,273 kWh
COPDHW (A2 / W10-55) EN 16147
2,3
COPDHW (A7 / W10-55) EN 16147
3
COPDHW (A14 / W10-55) EN 16147
3,5
Heating output (A20 / W35) EN 14511
1,75 [kW]
COP (A20 / W35) EN 14511
4,36
Heating output (A20 / W45) EN 14511
1,65
COP (A20 / W45) EN 14511
3,61
Heating output (A20 / W55) EN 14511
1,54 [kW]
COP (A20 / W55) EN 14511
3
Heating output (A20 / W65) EN 14511
1,46 [kW]
COP (A20 / W65) EN 14511
2,51
Standby power input according to EN16147
28,9 W
Refrigiant
R134a
Quantity of refrigiant
0,45 kg
Working range - air temperature
-7 / +45 °C
Max. temperatura sanitarne vode s toplotno črpalko
65 °C
Working Air Flow
330 m3/h
Pressure Drop by 400 m3/h
100 Pa
Water flow rate (PWM regulation)
200-400 l/h
Max water pressure in the pipe system
10 Mpa (bar)

Electrical specifications

Nominal electrical power -compressor
475 W
Maximum power consumption
2750 W
Number of el.heaters x power
2000 W
Voltage/Frequecy
230/50 V/Hz
Electric protection
16 A
Degree of protection
IP24

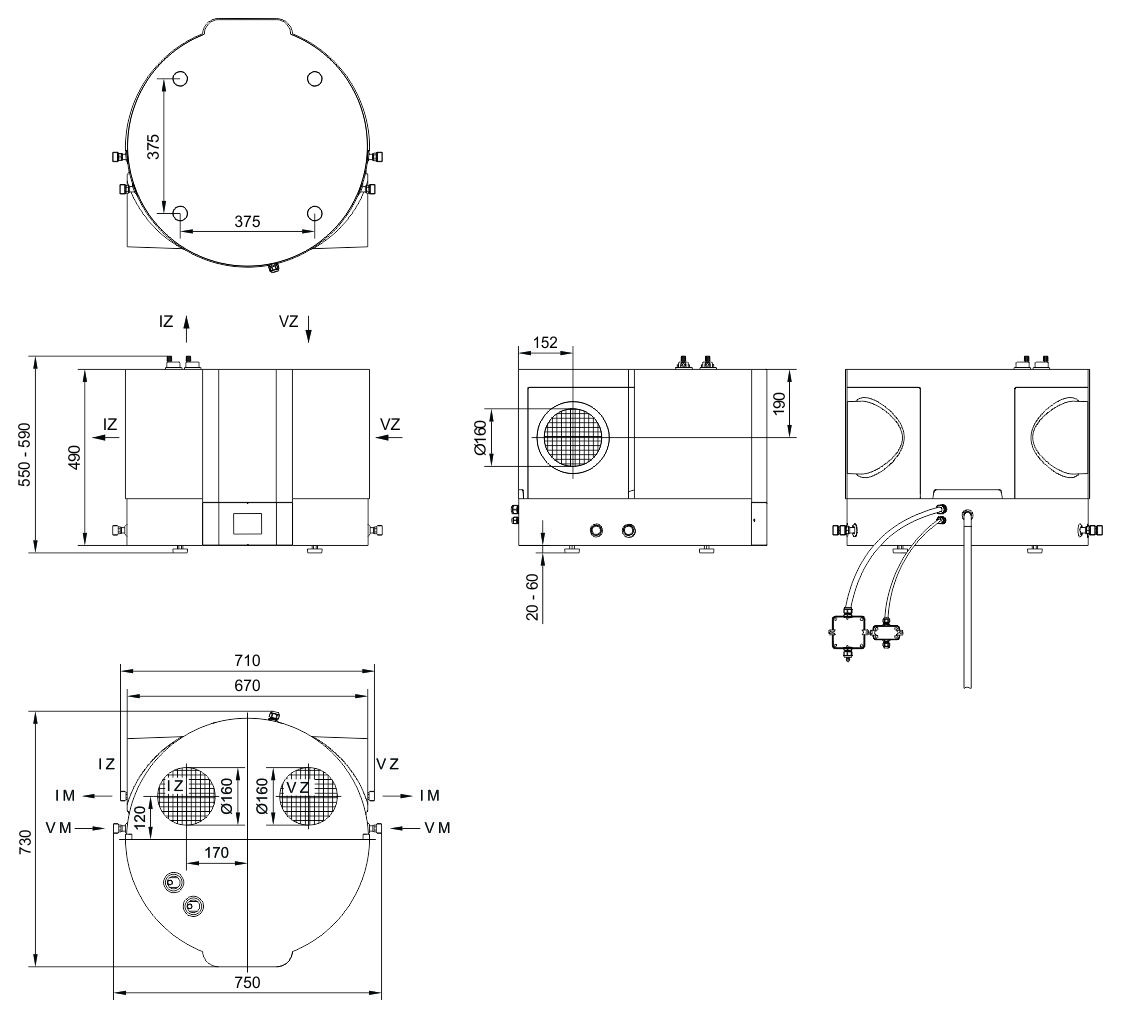

Connection dimensions

Height
550 mm
Width
750 mm
Depth
730 mm
Heat pump conection (left and right side)
G3/4
Dimensions of air connections
Ø160 mm
Netto weight
41 kg

Transportation data

Packaging dimensions
800 x 800 x 570 mm
